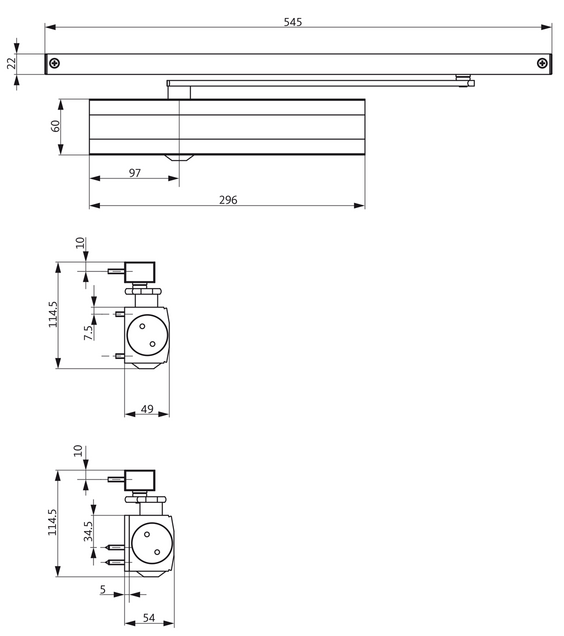

Door closer GU

Attributes

Door closer for 1-leaf doors with door leaf widths up to 1250 mm
Tested and certified in accordance with EN 1154
Steplessly horizontally adjustable closing force size EN 2-5
Valve functions which can be adjusted steplessly from the front:
                     Closing speed
                     Latching speed
Thermomatic valves ensure a uniform closing speed in the event of temperature fluctuations
Security valves in the closer protect against overloading
Max. door opening and closing angle 180°
Controlled closing from every opening angle
Compact aluminium housing with contemporary GU design
Door closer type: Surface-mounted door closer
Number of door leafs: Single-leaf
Maximale door leaf width (1-sash): 1250 mm
Function: Approved for fire and smoke protection doors
Application/installation type: Standard installation on hinge-side

Usage
1-leaf fire and smoke protection doors
1-leaf swing doors
Door leaf widths up to 1250 mm
DIN left and DIN right-handed
Standard installation on hinge-side
Use on fire and smoke protection doors is only permitted when using the mounting plate.
Opening angle dependent on door conditions

          Available colors:
                •    Silver
                •    Black
                •    white
